ALP-CONNEX Management UI — User Handbook

Introduction

The ALP-CONNEX Management UI is a web-based application for managing your connector infrastructure. It provides a central interface to create and manage connectors across all supported protocols, define data mappings, design data flows visually, monitor system activity, and manage your software license.

This handbook describes each area of the application and how to use it.

Getting Started

Login

The application uses your organization's Microsoft Entra ID (Azure AD) account for authentication. When you open the application, you will be automatically redirected to the Microsoft login page if you are not already signed in.

After successful login, you are redirected to the Dashboard.

If the login fails, you will see a "Login Failed" page with the option to retry or return to the home page.

Navigation

The main navigation is located in the sidebar on the left side of the screen. It displays icon-based links to all areas of the application. Hover over an icon to see a tooltip with the section name.

Icon	Section	Description
🏠	Dashboard	Customizable overview with KPIs, charts, and a fleet map

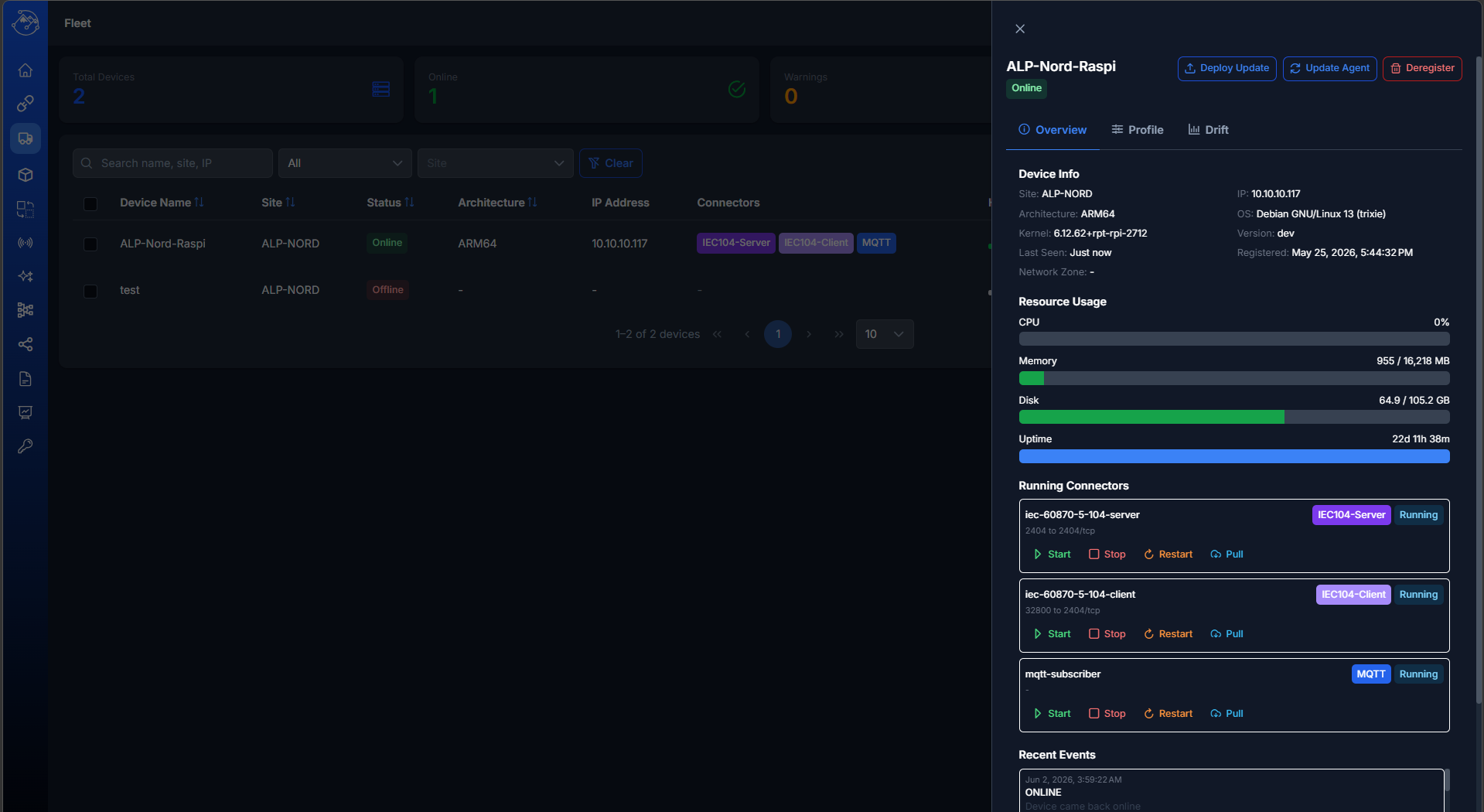

🚚	Fleet Management	Edge device monitoring, device groups, and connector templates (Experimental)

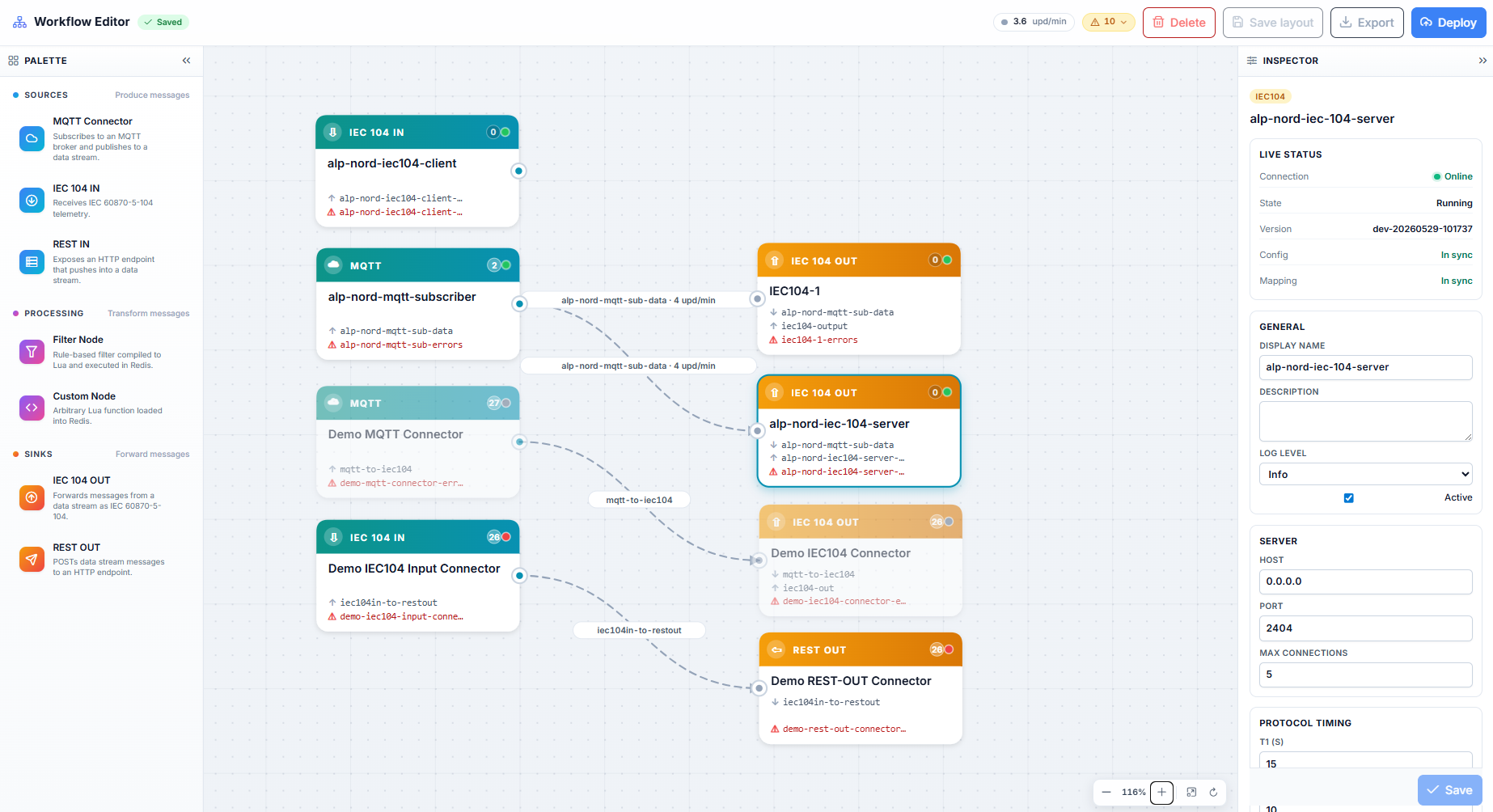

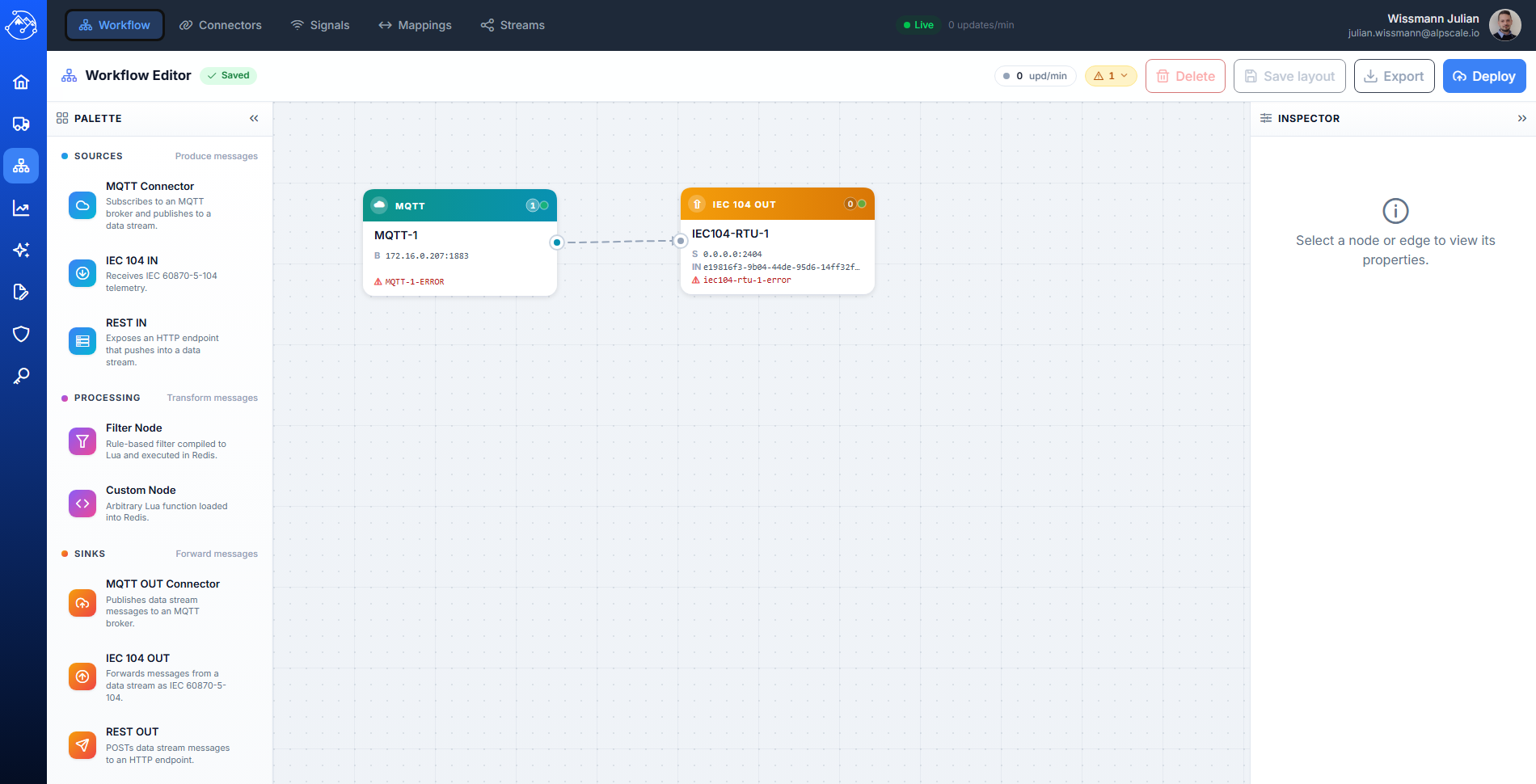

🗺️	Data Configuration	Connectors, signals, mappings, streams, and the workflow editor — all in one area

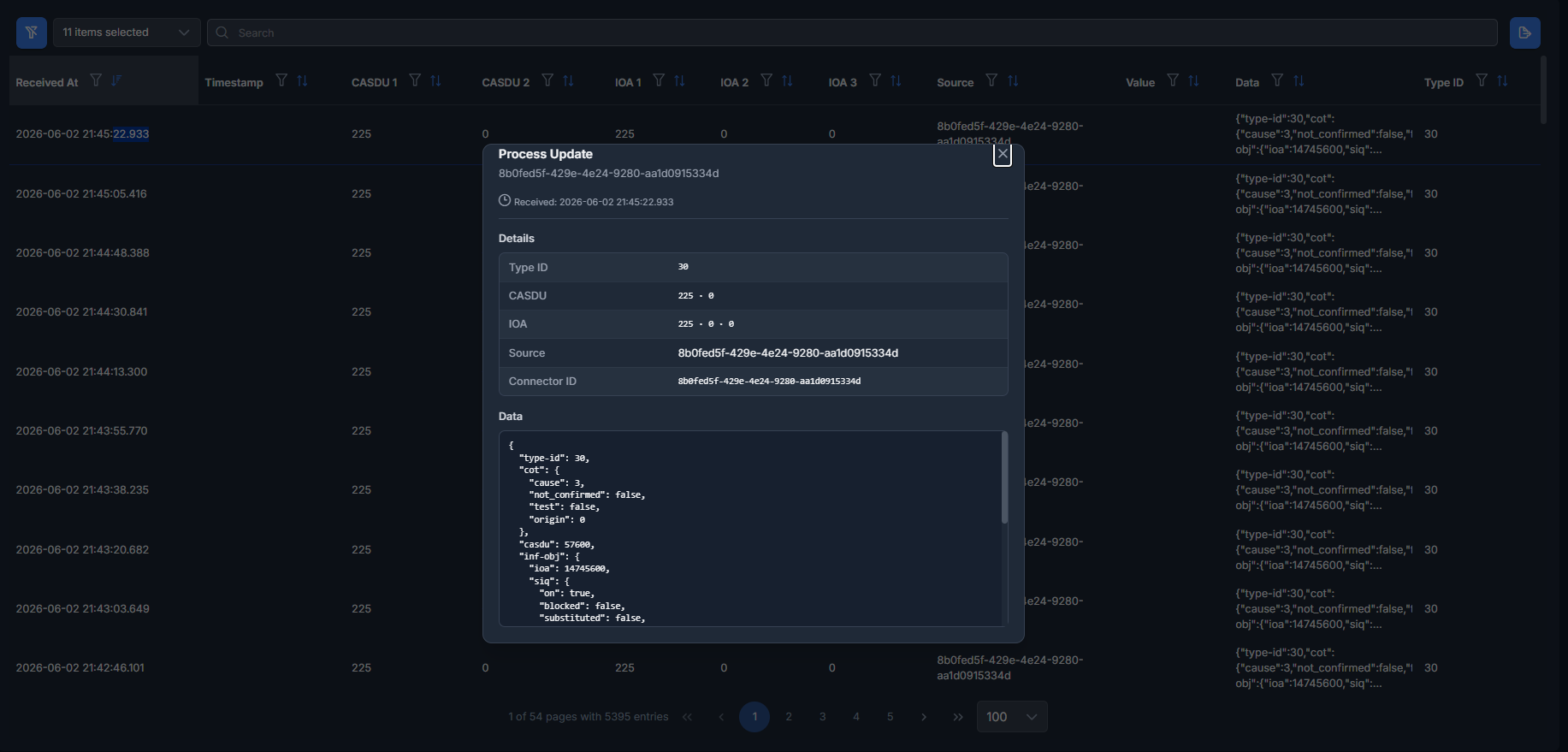

📊	Process Updates	Real-time connector activity
🧠	AI Insights	AI-assisted explanations, recommendations and operator chat (Experimental; hidden if not configured)

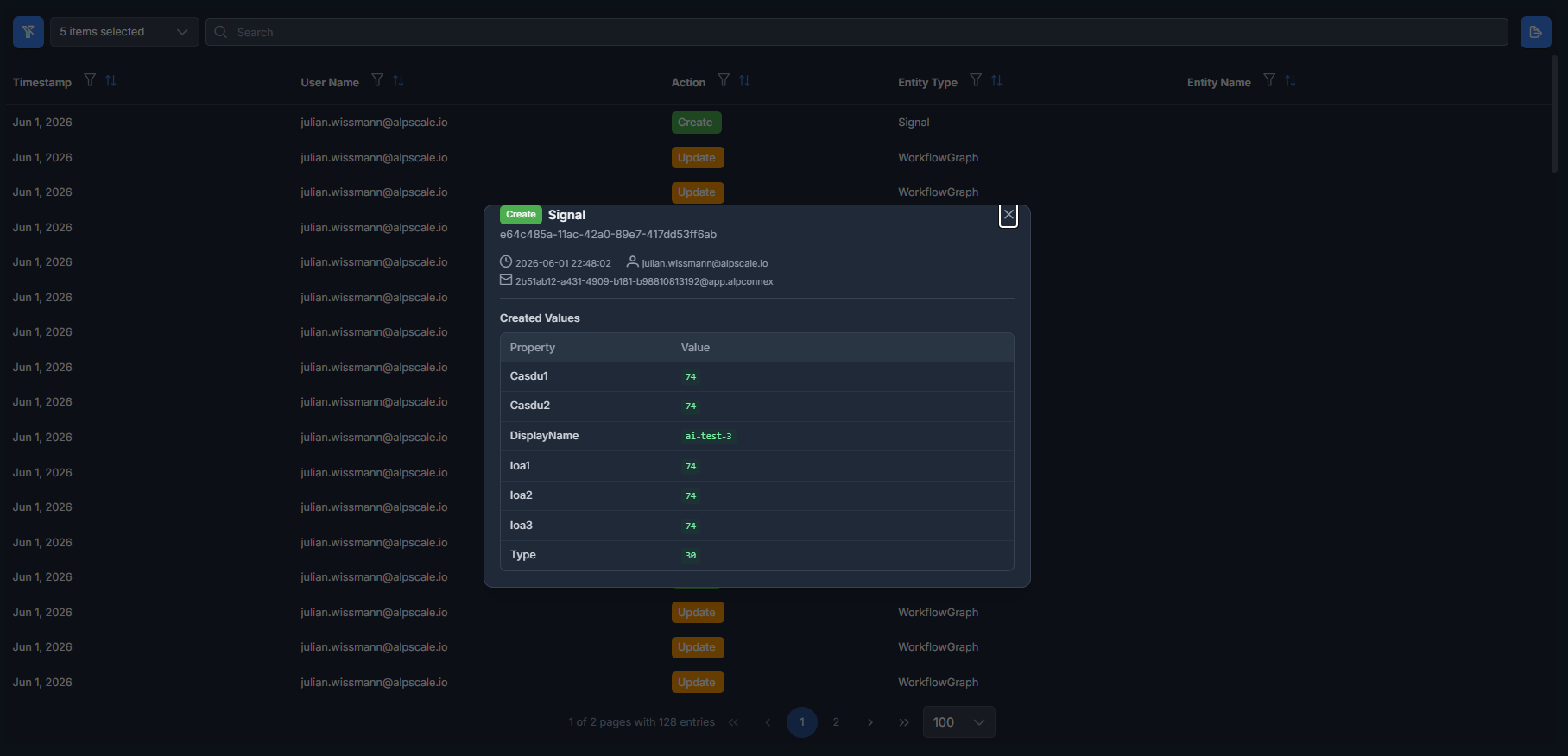

📄	Audit Logs	Activity history

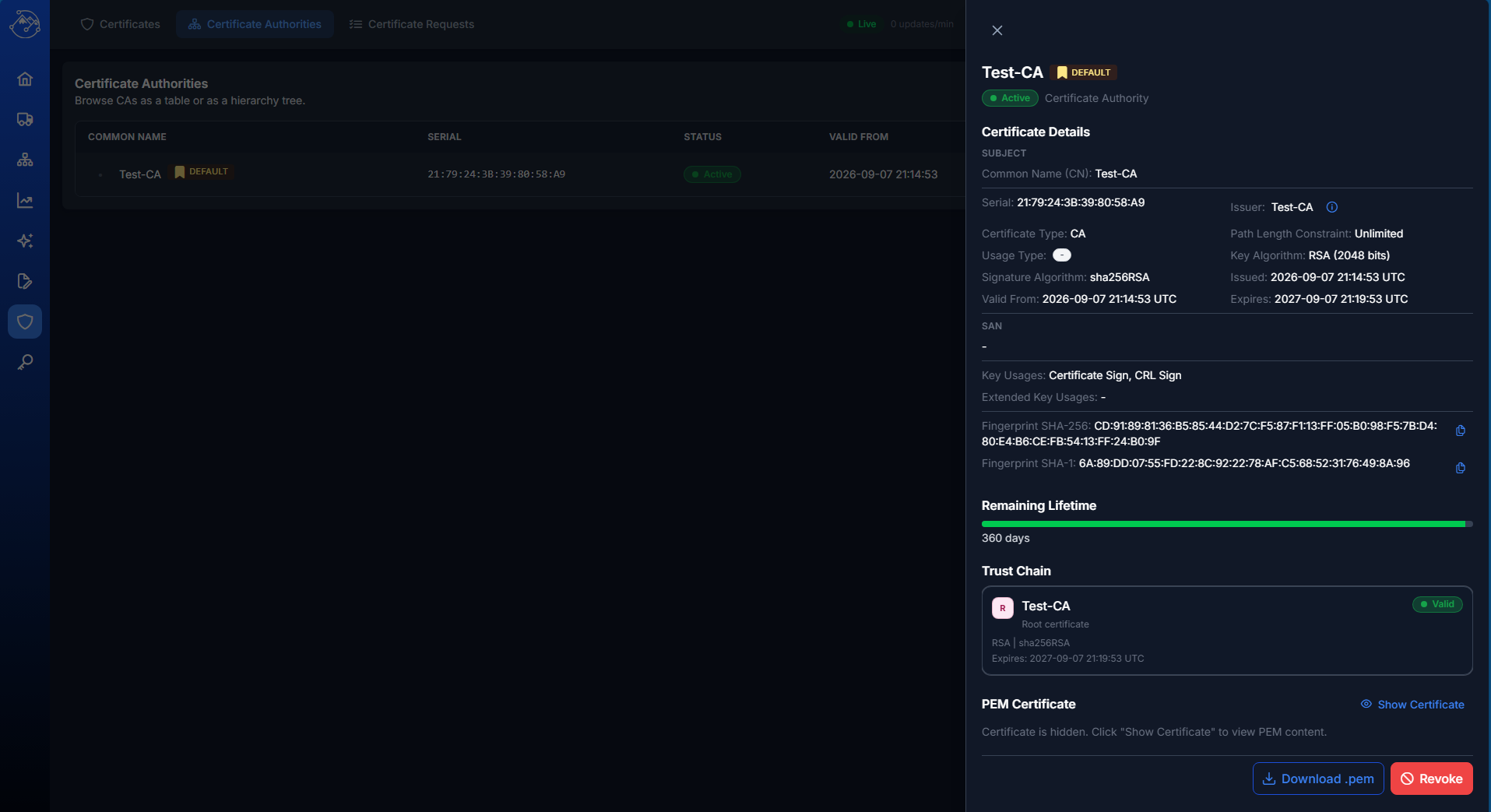

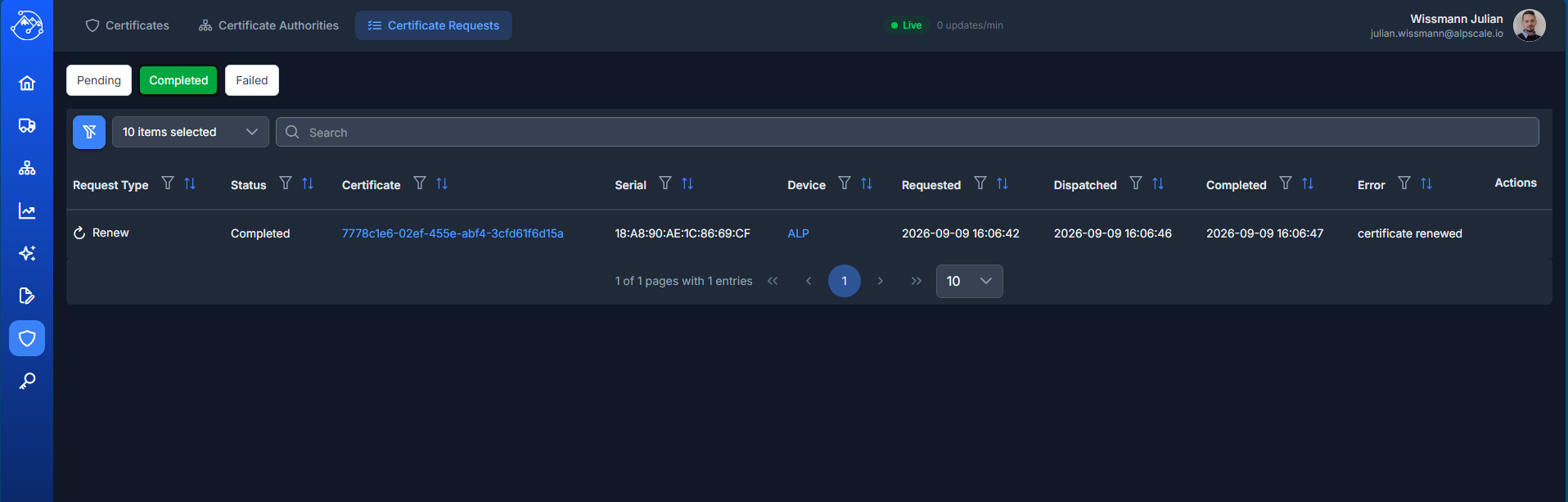

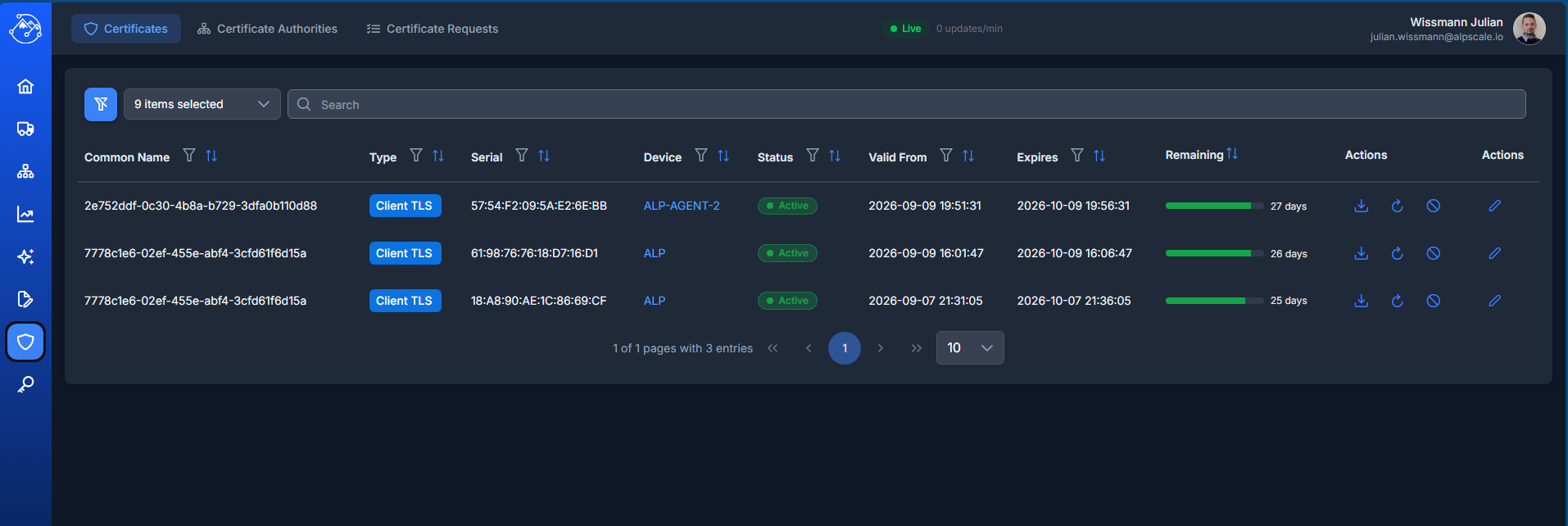

🛡️	Certificate Management	Device PKI: certificates, certificate authorities, and certificate requests
🔑	Licensing	License management

Several sections — currently Data Configuration and Fleet Management — bundle multiple related views behind tabs shown at the top of the page instead of separate sidebar entries. Switching tabs does not reload the page.

On mobile devices, the sidebar is hidden behind a hamburger menu. On desktop, it is always visible.

Header Bar

The bar at the top of the page adapts to what you're looking at:

• On pages with tabs (Data Configuration, Fleet Management), it shows the tab navigation for that page.
• On other pages, it shows either a page title or breadcrumbs (e.g., on Edit Connector, Edit Mapping, Signal Detail) so you can navigate back to the parent list.
• A live connection indicator (Live / Connecting / Reconnecting / Offline) plus the current updates/min rate is shown centrally whenever the real-time connection is active.
• Your display name, username, and Microsoft profile photo (or your initials, if no photo is available) appear on the right. Click it to open your Profile page — this is also where you sign out.

Breadcrumbs

Detail pages (e.g., Edit Connector, Edit Mapping, Signal Detail) show breadcrumbs in the header area, allowing quick navigation back to the parent list.

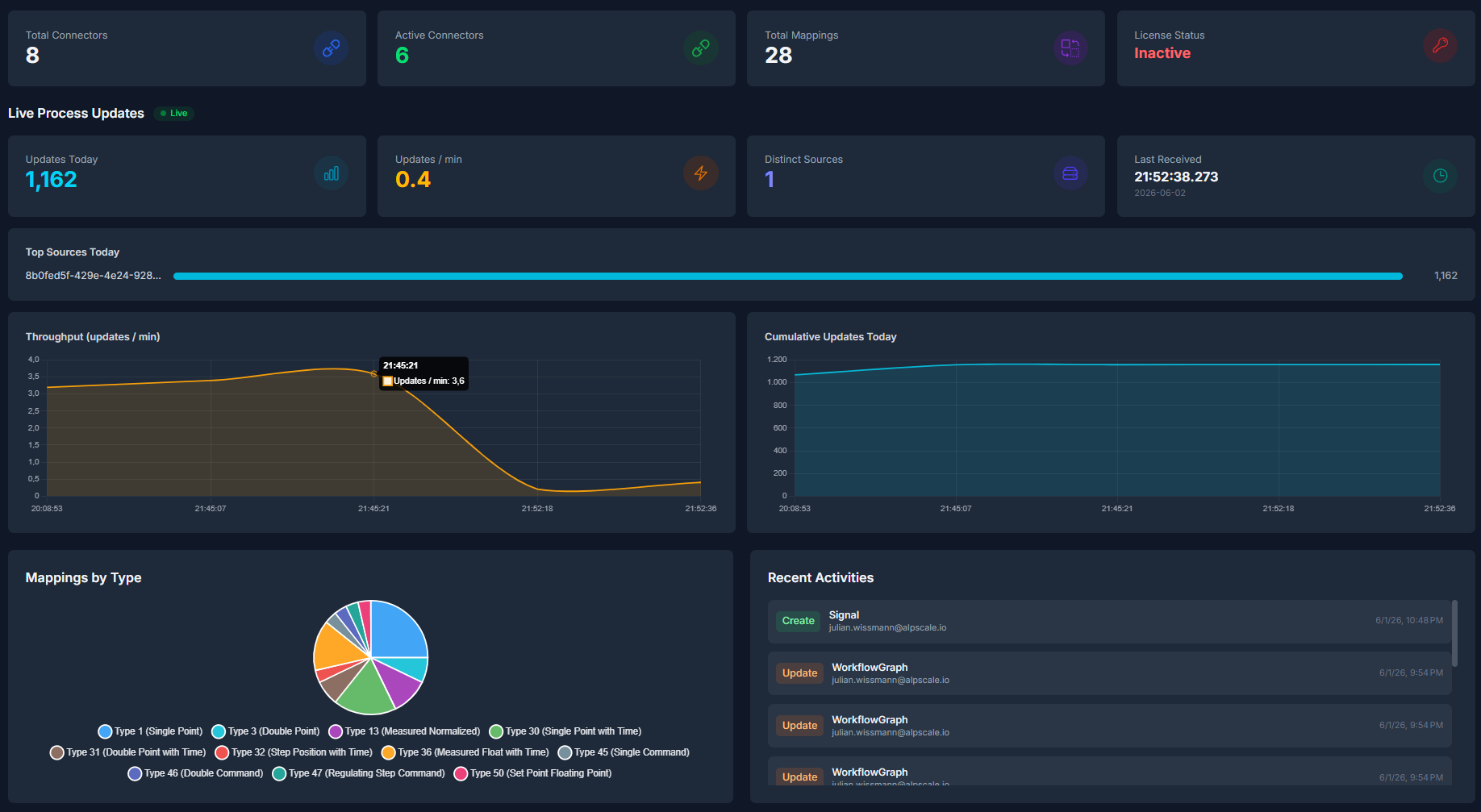

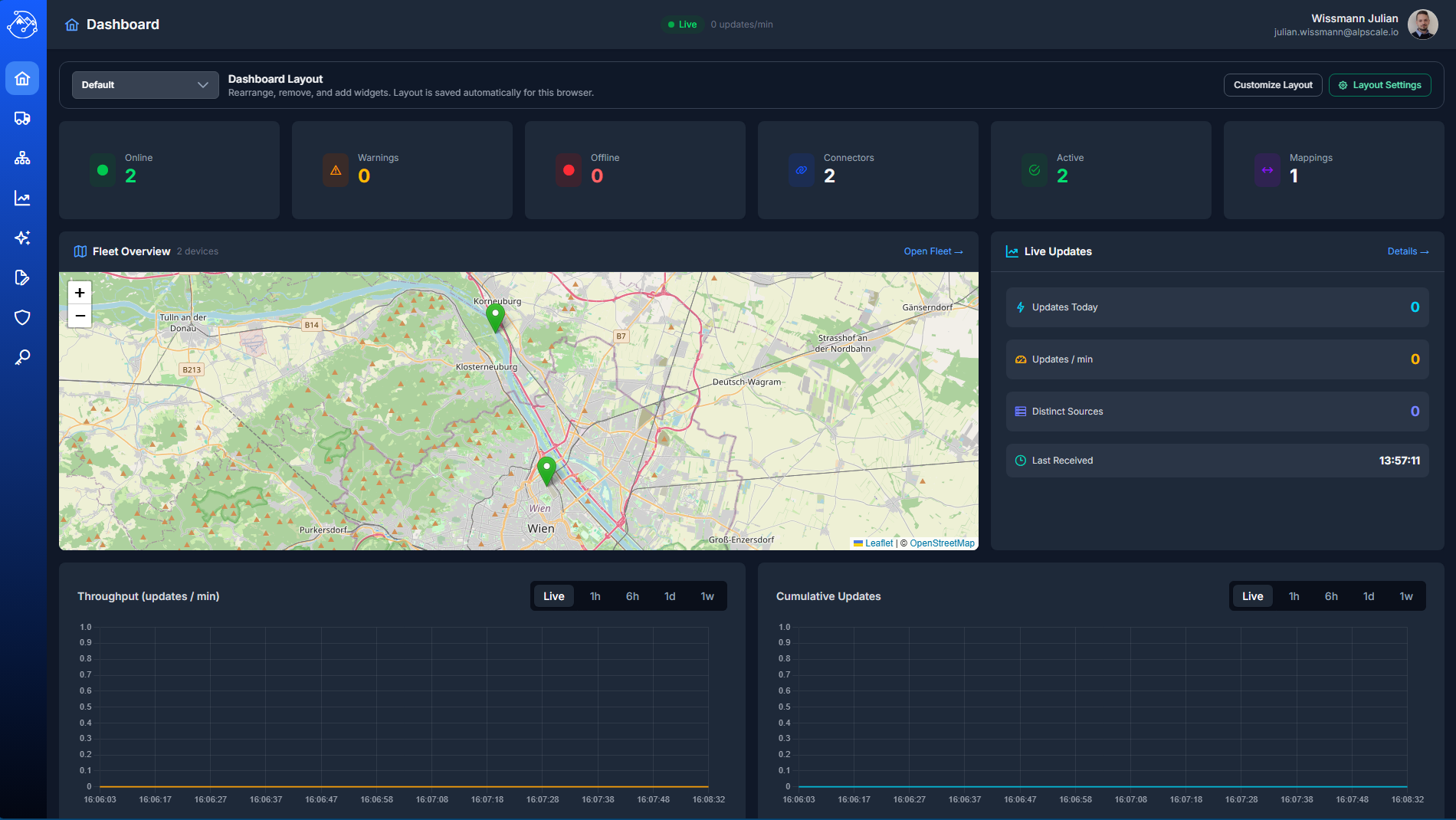

Dashboard

The Dashboard provides a quick, customizable overview of your system's current state. It is the first page you see after logging in.

Customizable Layout

Unlike a fixed set of cards, the Dashboard is a grid of independent widgets that you can rearrange to fit how you work:

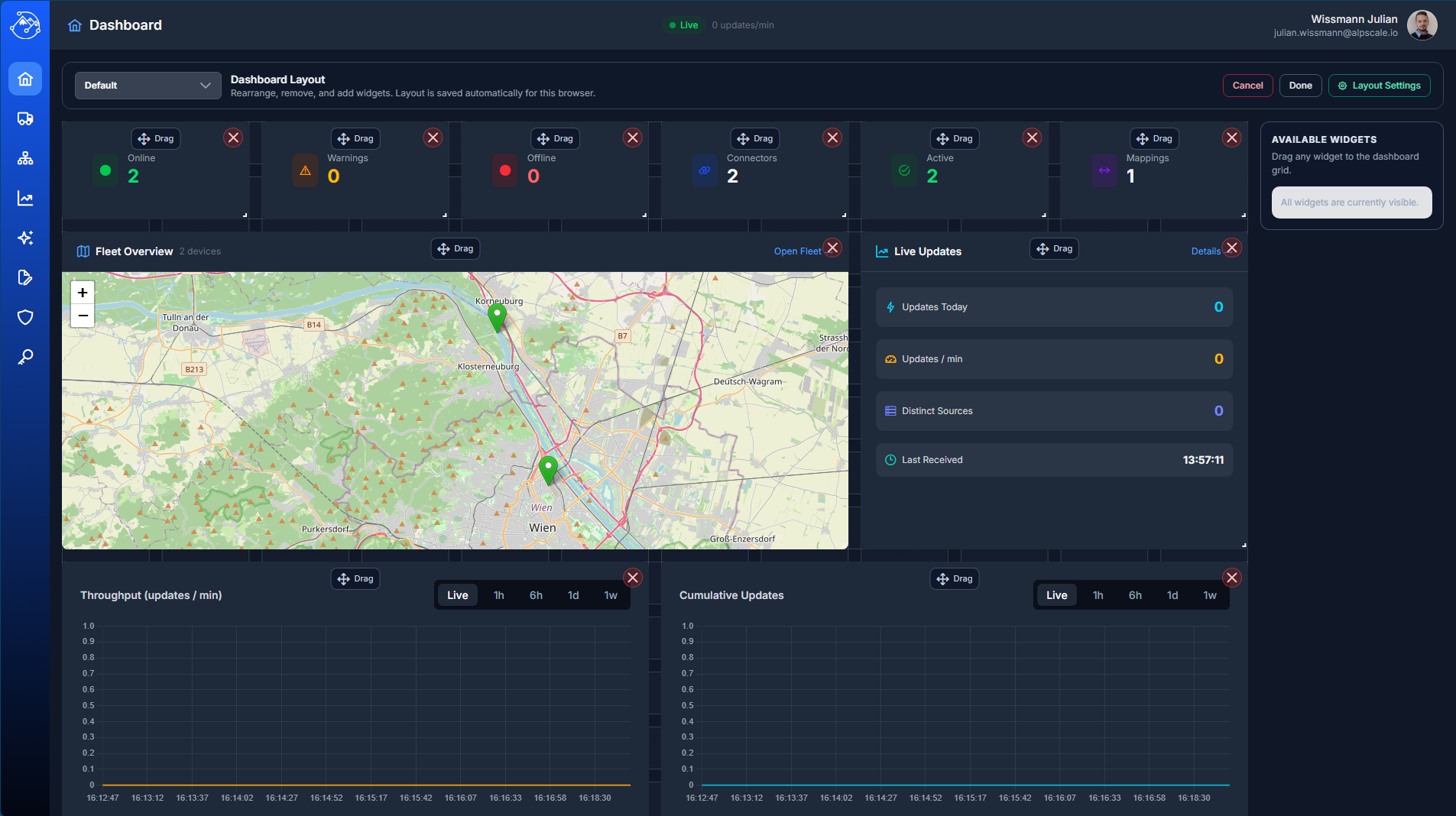

• Customize Layout — Switches the grid into edit mode. In this mode you can drag widgets to reposition them, resize them by dragging their edges, or remove a widget by clicking the × handle on it.
• Available Widgets panel — While in edit mode, a sidebar lists any widgets that aren't currently on the grid; drag one onto the grid to add it back.
• Layout Settings — Lets you save the current arrangement as a named layout, switch between saved layouts using the layout selector, rename or remove a layout, or reset the built-in Default layout back to its original arrangement.
• Your layouts are saved automatically to your account, so they follow you across devices and browser sessions.
• The grid adapts to screen size (desktop, tablet, mobile use different arrangements).

Available Widgets

Widget	Shows
Online / Warnings / Offline	Fleet device counts by status (click to open Fleet Management)
Connectors / Active / Mappings	Counts from Data Configuration (click to open it)
Fleet Overview	A map of all registered edge devices with known coordinates, color-coded by status (green online, orange warning, blue updating, red offline); click a marker for device details
Live Updates	Updates received today, the current update rate per minute, the number of distinct sources, the timestamp of the last update, and a breakdown of the top-producing sources
Throughput	A line chart of update rate over time — live, or over a selectable historical window (1h/6h/1d/1w)
Cumulative Updates	A line chart of the running total of updates over the same selectable windows
Mappings by Type	A pie chart showing how mappings are distributed across the supported IEC 104 data types
Recent Activities	The latest create/update/delete/configure actions performed in the system, with user and timestamp (click an entry to jump to the affected area)
Data Streams	A quick list of active data streams; click one to open its detail dialog
License Usage	Progress bars for used connectors and used mappings against your license limits, plus your license status

Metrics update automatically in real time without requiring a page refresh.

Data Configuration

Data Configuration bundles everything related to designing and wiring up your data flows into a single page with five tabs: Workflow (shown by default), Connectors, Signals, Mappings, and Streams. Switch between them using the tab bar in the header — the page itself does not reload.

Connectors

Connectors represent protocol-specific adapter instances. The system supports the following connector types:

• MQTT Subscriber — Connects to an MQTT broker to ingest IoT sensor data.
• IEC 60870-5-104 Server — Serves data to SCADA/control systems.
• IEC 60870-5-104 Client — Reads data from remote control systems.
• HTTP-Server + Webhook — Exposes data via HTTP and pushes updates via webhooks.
• HTTP-Receiver — Accepts incoming data via HTTP POST requests.

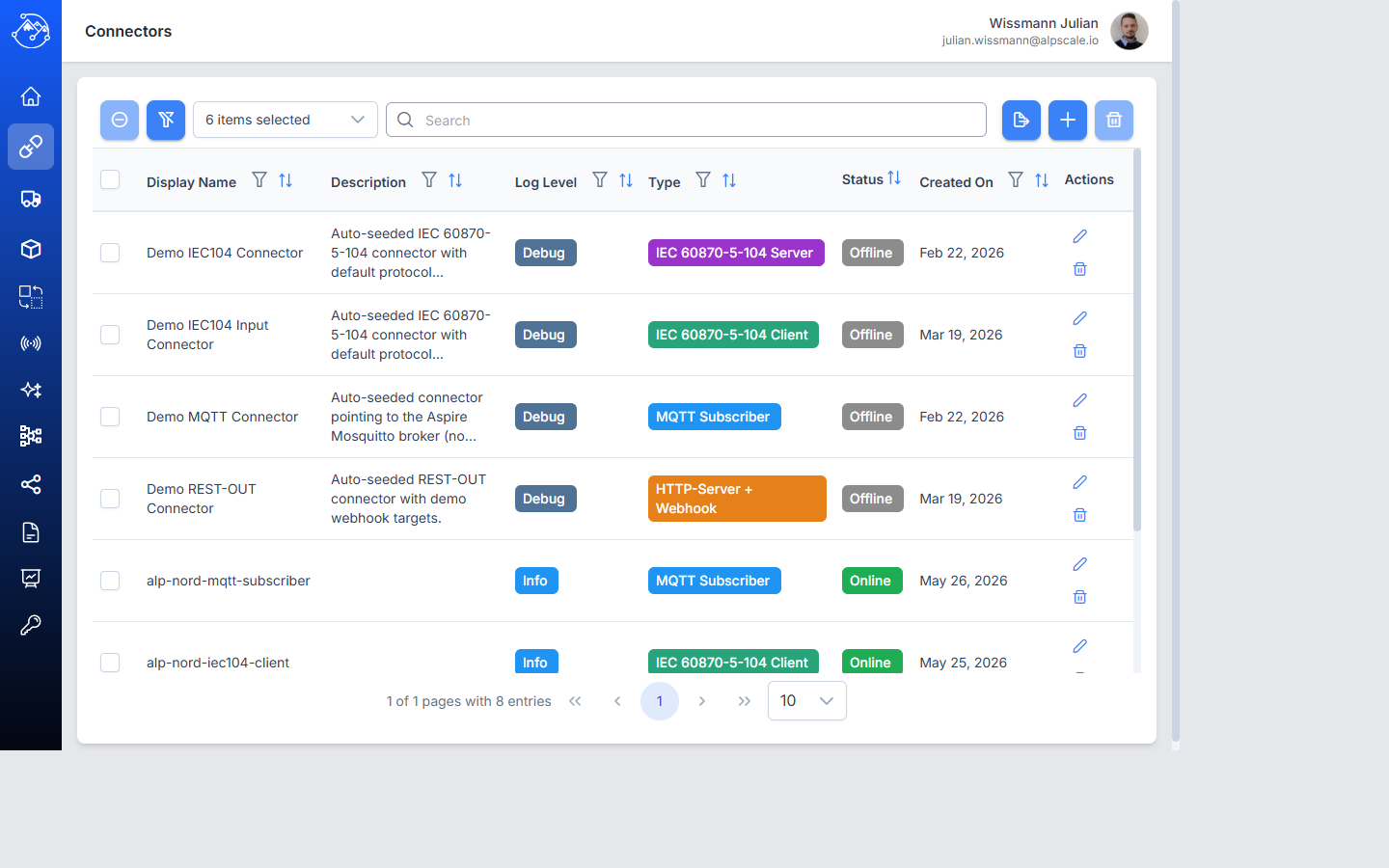

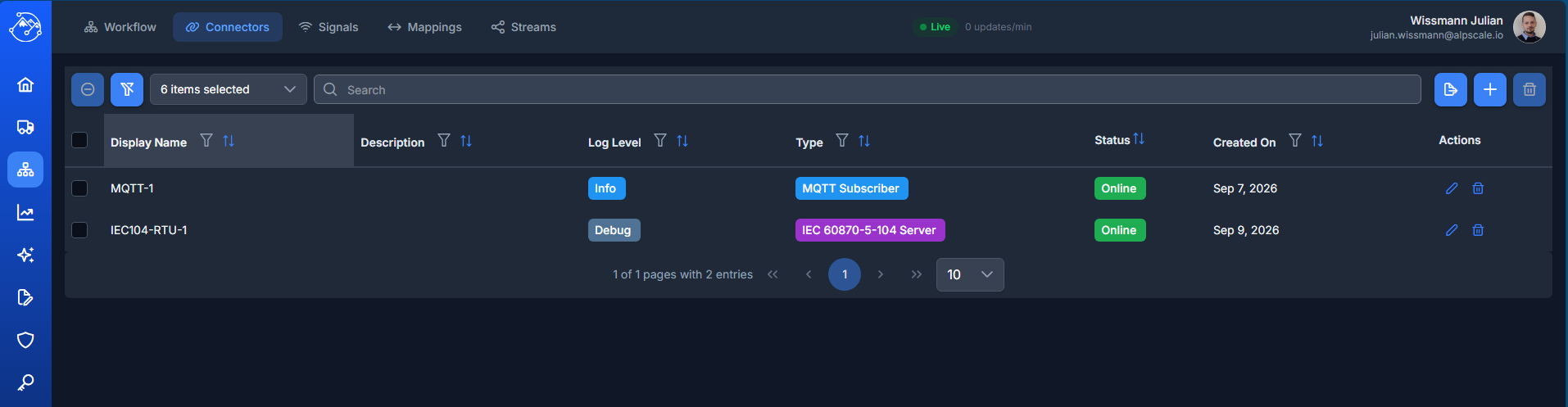

Connector List

The connector list displays all connectors in a sortable, filterable table.

Available columns:

Column	Description
Display Name	The connector name
Description	Optional description text
Log Level	Logging verbosity (Trace, Debug, Info, Warning, Error, Critical, Off) — shown as a colored tag
Type	The connector protocol type — shown as a colored tag
Status	Live connection status — "Online" (green), "Offline" (red), or "Sync Pending" (orange)
Created On	Date and time when the connector was created
Actions	Edit and delete buttons for quick access

Table features:

• Search — Filter by display name or description.
• Column filters — Click the filter icon in a column header for advanced filtering. Type and Active columns have dropdown filters.
• Sorting — Click a column header to sort ascending or descending.
• Column selection — Use the column picker to show or hide columns.
• Pagination — Navigate between pages at the bottom of the table.
• Export — Export the table data to an Excel file (.xlsx).

Creating a Connector

1. Click the + button in the table toolbar. You are taken to the Add Connector page.
2. Fill in the required fields:

• Type (required) — Select one of: MQTT Subscriber, IEC 60870-5-104 Server, IEC 60870-5-104 Client, HTTP-Server + Webhook, or HTTP-Receiver.
• Display Name (required) — A descriptive name for the connector (max. 200 characters).
• Log Level (required) — The logging verbosity. Defaults to "Info".
• Host (required) — The address of the broker or target system (max. 500 characters).
• Port (required) — The port number (1–65,535). Defaults to 1883 for MQTT, 2404 for IEC 104 (Server and Client), or 5000 for REST connectors.
• Active — Toggle switch to enable or disable the connector. New connectors are active by default.
• Description (optional) — Additional notes (max. 1,000 characters).

3. IEC 60870-5-104 Server only — When "IEC 60870-5-104 Server" is selected as the type, additional protocol parameters are shown:

   Field	Description	Default
   Max Connections	Maximum number of simultaneous client connections	1
   T1 — Send/Test APDU Timeout	Timeout for send or test APDUs (seconds)	15
   T2 — Acknowledge Timeout	Timeout for acknowledging received APDUs (seconds)	10
   T3 — Test Frame Timeout	Timeout for sending test frames (seconds)	20
   K — Max Unacknowledged APDUs	Maximum number of unacknowledged I-format APDUs	12
   W — Acknowledge After W APDUs	Send S-format acknowledgement after this many APDUs	8

   MQTT Subscriber only — When "MQTT Subscriber" is selected, additional authentication fields are shown:

   Field	Description
   Username	MQTT broker username for authentication (optional, max. 200 characters)
   Password	MQTT broker password (optional; stored encrypted with AES-GCM; leave blank when editing to keep existing password)

   When a username is provided, a password is required.

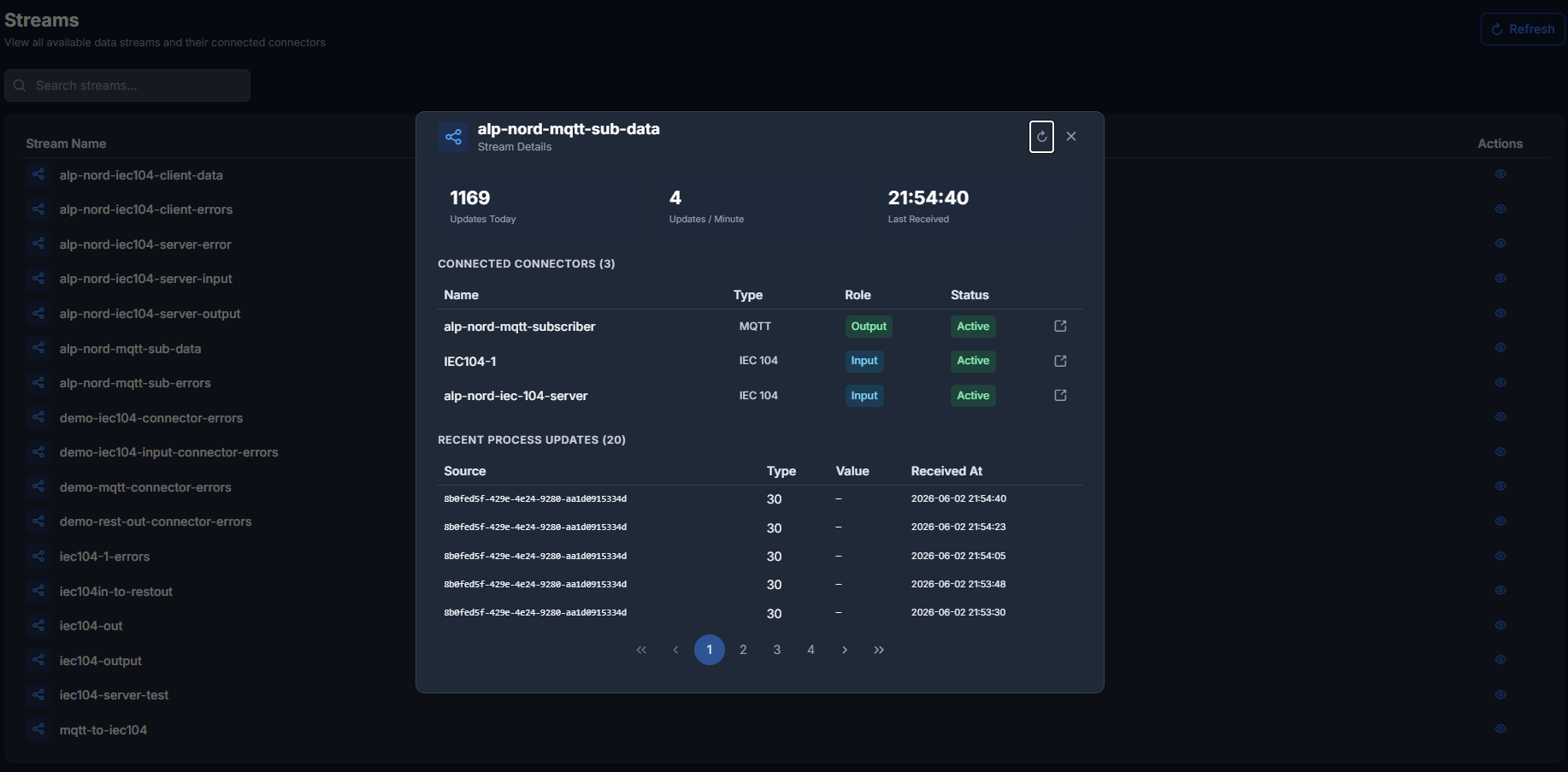

4. Stream Configuration (optional, all connector types):

   Field	Description
   Input Data Stream	Name of the data stream the connector reads data from (autocomplete from existing streams)
   Output Data Stream	Name of the data stream the connector writes data to (autocomplete from existing streams)
   Error Stream	Name of the data stream for error reporting (auto-suggested based on connector name)

   Streams can be selected from existing streams via autocomplete or created by typing a new name.

5. Click Save to create the connector, or Cancel to return to the list.

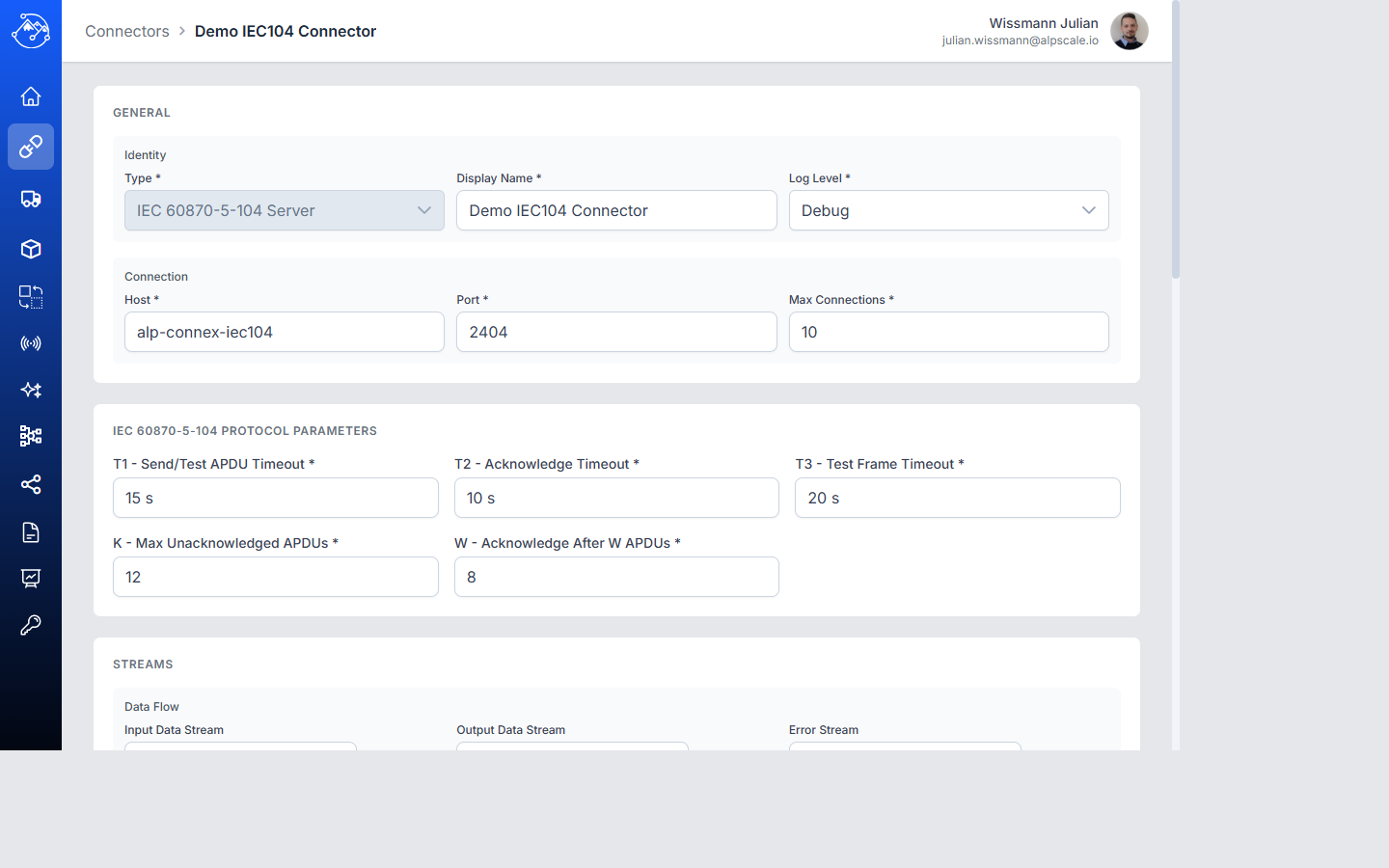

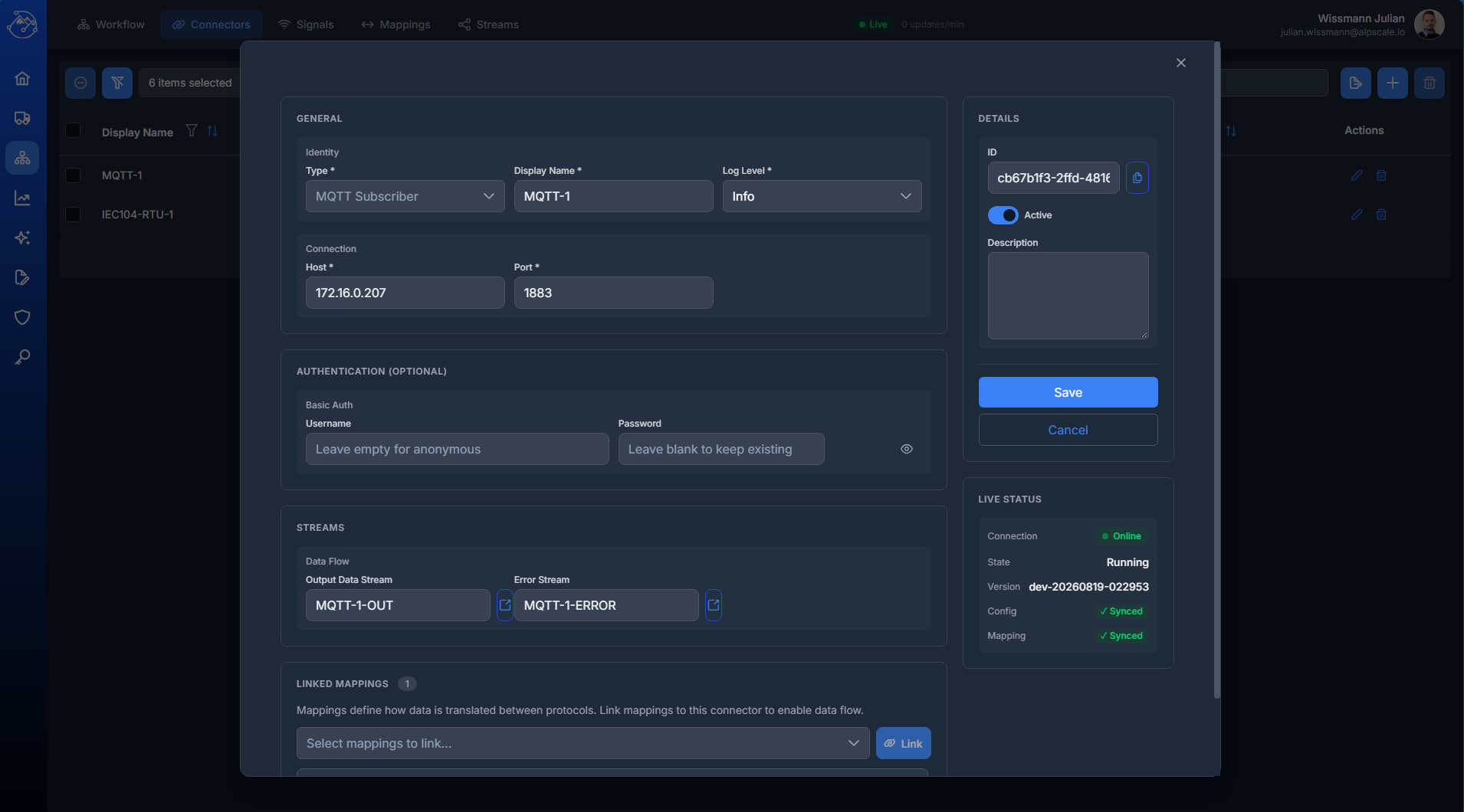

Editing a Connector

1. Click a row in the table. You are taken to the Edit Connector page.
2. Modify the fields as needed. The Type and ID fields cannot be changed.
3. Click Save to apply the changes, or Cancel to discard.

In edit mode, the connector ID is displayed at the top with a copy button for easy reference (e.g., for use in deployment configuration).

Linking Mappings to a Connector

In edit mode, a Linked Mappings section appears below the form. This allows you to associate data point mappings with a connector.

To link mappings:

1. Use the dropdown at the top of the section to search for and select mappings.
2. Click Link to associate the selected mappings.

To unlink a mapping:

1. Click the unlink button next to the mapping.
2. Confirm in the dialog.

Each linked mapping is shown as a clickable row displaying its name, type tag, and active status. Clicking a mapping navigates to its detail page.

When more than 5 mappings are linked, a search field appears to filter the list.

Deleting Connectors

Select one or more rows using the checkboxes, then click the delete button in the toolbar. Confirm in the dialog.

Mappings

Mappings define how incoming JSON data is translated into IEC 104 data points. Each mapping extracts a value (and optionally a timestamp) from a JSON payload and assigns it to a specific IEC 104 address.

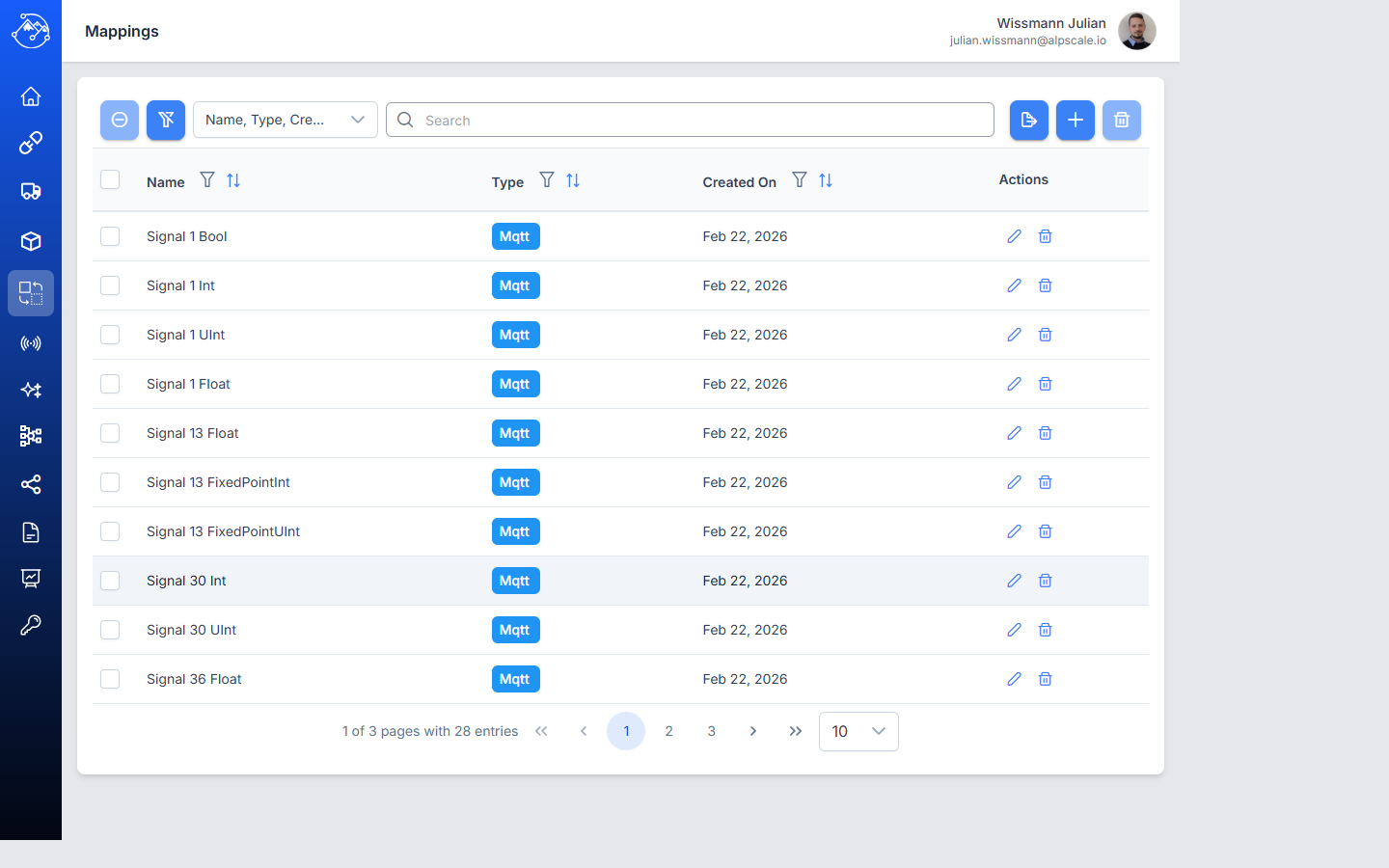

Mapping List

The mapping list displays all mappings in a sortable, filterable table.

Available columns:

Column	Description
Name	The mapping name
Topic	The topic or identifier this mapping is associated with
CASDU	Common Address of ASDU — the station address, shown as two bytes
IOA	Information Object Address — the data point address, shown as three bytes
Type	The IEC 104 data type — shown as a colored tag
Created On	Date and time when the mapping was created

Table features: Same as the Connector list (search, filters, sorting, column selection, pagination, export).

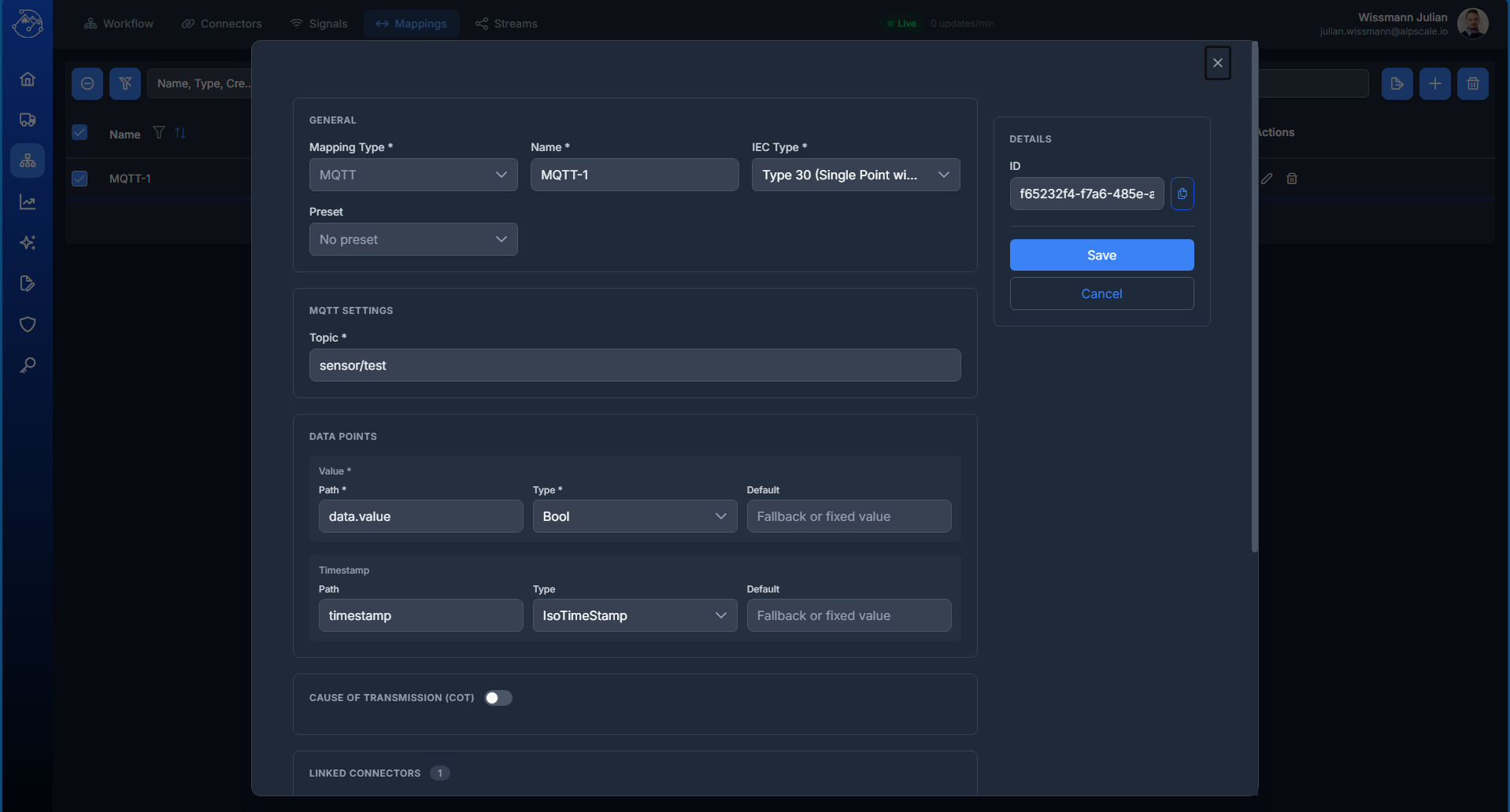

Creating a Mapping

1. Click the + button in the table toolbar. You are taken to the Add Mapping page.

2. Fill in the required fields:

   General:

   • Mapping Type (required) — The connector type this mapping applies to (e.g., MQTT, REST).
   • Name (required) — A descriptive name for the mapping (max. 200 characters).
   • Topic (required) — The topic or identifier to subscribe to (max. 500 characters), e.g., sensors/temperature.

   IEC 104 Addressing:

   • CASDU Byte 1 and Byte 2 (required) — The station address, entered as two individual bytes (0–255 each).
   • IOA Byte 1, Byte 2, and Byte 3 (required) — The data point address, entered as three individual bytes (0–255 each).
   • Type (required) — The IEC 104 data type (Type 1, 3, 13, 30, 31, 32, 36, 45, 46, 47, 50).

   Value Data Point:

   • Path (required) — JSON path expression pointing to the value in the MQTT payload (e.g., $.data.value, max. 500 characters).
   • Type (required) — The data type of the extracted value (Bool, Int, UInt, Float, Double, FixedPointInt, FixedPointUInt).
   • Point Position — Only shown when the value type is FixedPointInt or FixedPointUInt.

   Timestamp Data Point (only for Type 30 and Type 36):

   • Path — JSON path to a timestamp in the MQTT payload (e.g., $.timestamp).
   • Type — The timestamp format (IsoTimeStamp or UnixTimeStamp).
   • Duration Unit — Only shown when the timestamp type is UnixTimeStamp (e.g., ms).

   Default Value (optional, per data point):

   • A fallback value used when the JSON payload does not contain the expected field or when the extracted value is invalid. The default is validated against the selected data type.

   Cause of Transmission (CoT) (optional):

   • Test — Whether the data point is marked as test data.
   • Negative — Whether the transmission is a negative confirmation.
   • Cause — The transmission cause value (e.g., spontaneous, interrogated).

3. Click Save to create the mapping, or Cancel to return to the list.

Editing a Mapping

1. Click a row in the table. You are taken to the Edit Mapping page.
2. Modify the fields as needed. The Mapping Type and ID fields cannot be changed.
3. Click Save to apply the changes, or Cancel to discard.

In edit mode, the mapping ID is displayed at the top with a copy button.

Linking Connectors to a Mapping

In edit mode, a Linked Connectors section appears below the form. This works the same way as linking mappings to a connector (see above), but in reverse — you associate connectors with a mapping.

Each linked connector shows its name, type tag (MQTT/IEC 104), and active/inactive status. Clicking a connector navigates to its detail page.

Linking Signals to a Mapping

In edit mode, a Linked Signals section appears below the form. This allows you to associate IEC 104 signals (address points) with a mapping. Signals define the target CASDU+IOA addresses that the mapping writes to.

To link signals: Use the dropdown to search for and select signals. Click Link to associate them.

To unlink a signal: Click the unlink button next to the signal. Confirm in the dialog.

Each linked signal shows its name, type tag, and CASDU+IOA address. Clicking a signal navigates to its detail page. When linking a signal, the system validates that the signal's IEC 104 type matches the mapping's type.

Deleting Mappings

Select one or more rows using the checkboxes, then click the delete button in the toolbar. Confirm in the dialog.

Understanding Value Paths

The Path field uses JSON path expressions to extract values from incoming messages. For example, given the following JSON payload:

{
  "data": {
    "value": 23.5,
    "unit": "°C"
  },
  "timestamp": "2026-01-15T10:30:00Z"
}

• Value Path $.data.value → extracts 23.5
• Timestamp Path $.timestamp → extracts "2026-01-15T10:30:00Z"

Signals

Signals define the IEC 104 address points that are available in the system. Each signal represents a unique combination of CASDU + IOA with a specific IEC 104 data type. Signals can be linked to mappings to define which address a mapping writes to. The signal list also shows live values received from the process image in real time.

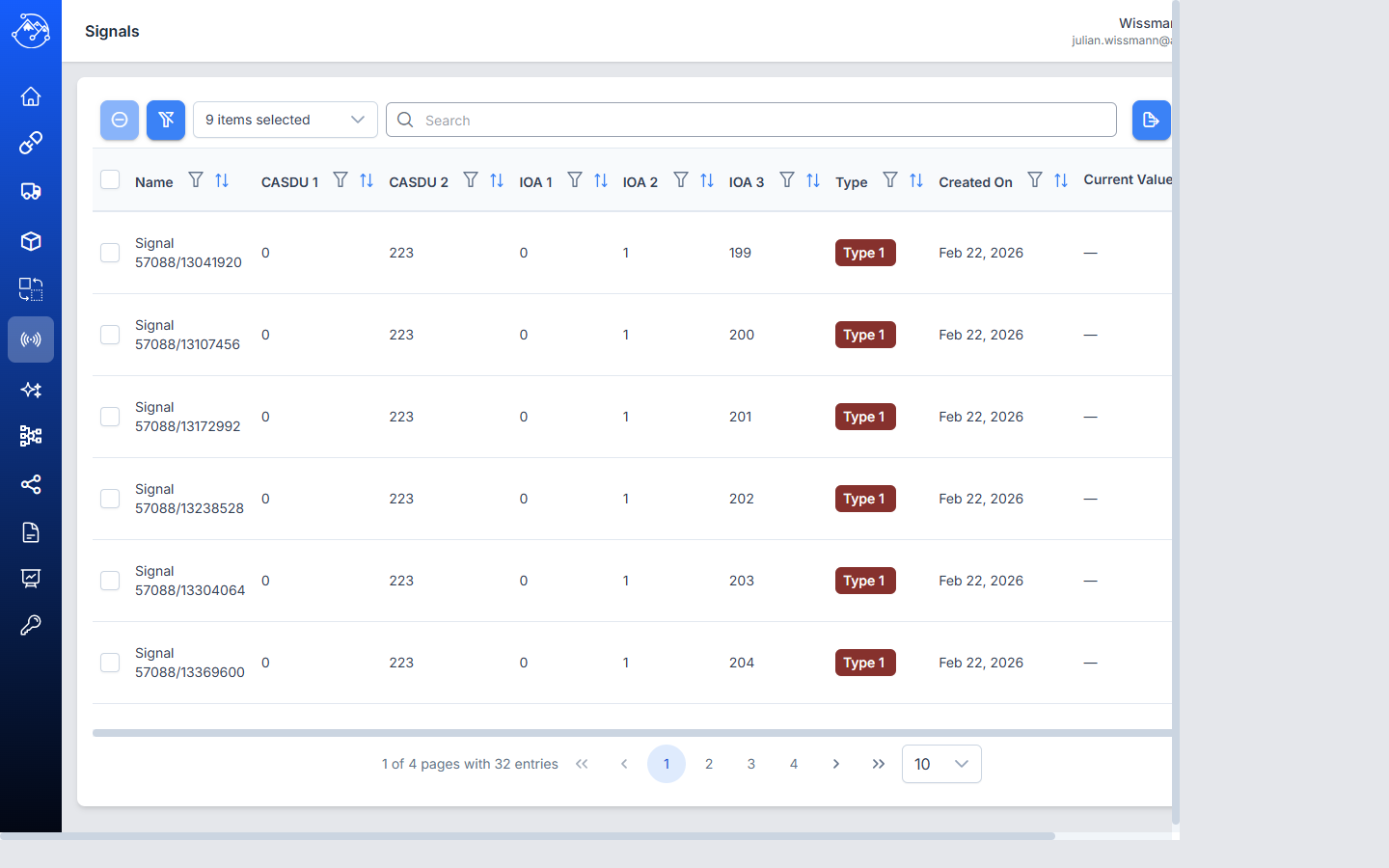

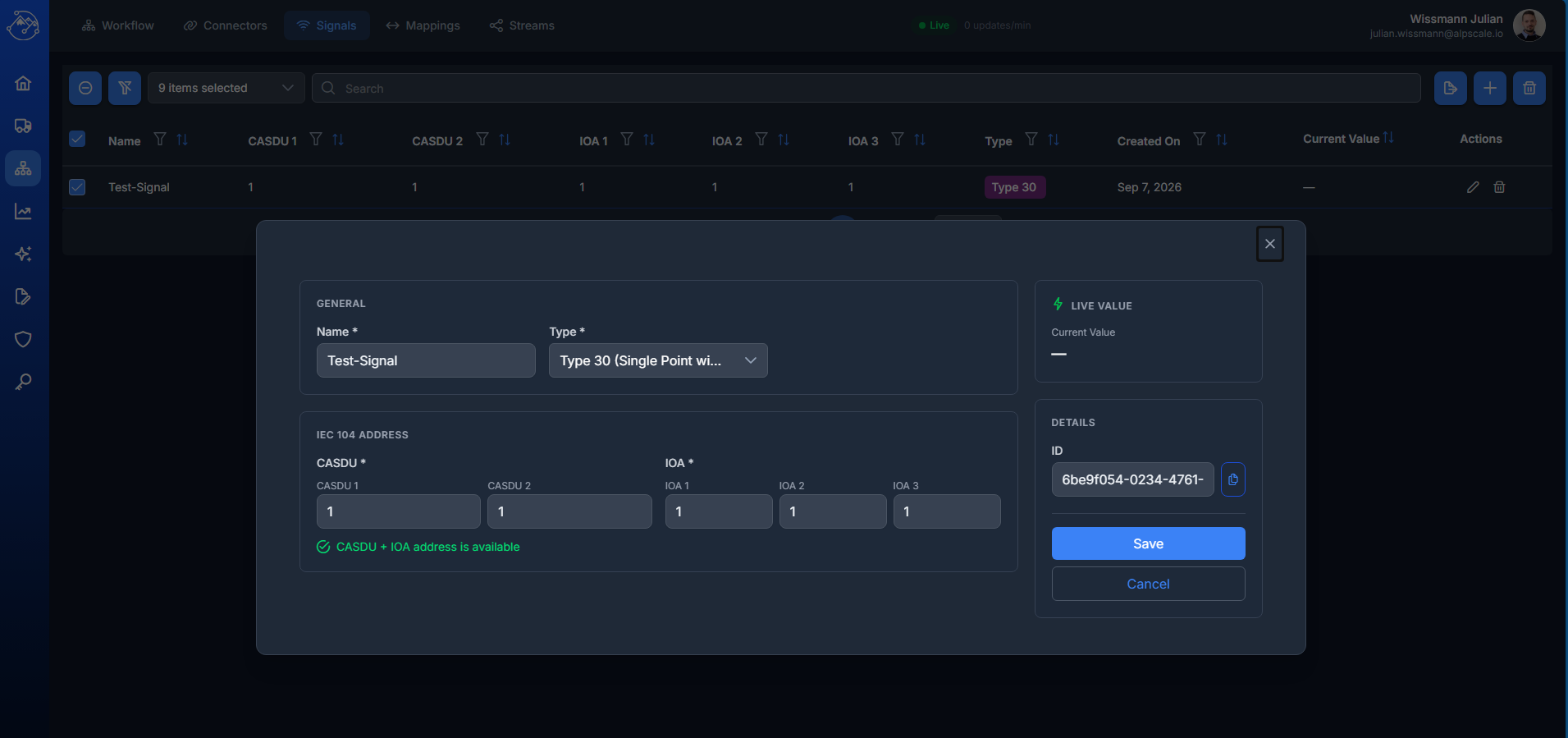

Signal List

The signal list displays all signals in a sortable, filterable table.

Available columns:

Column	Description
Name	The signal display name
CASDU 1 / CASDU 2	The station address bytes
IOA 1 / IOA 2 / IOA 3	The data point address bytes
Type	The IEC 104 data type (Type 1–50) — shown as colored tag
Created On	Date and time when the signal was created

Table features: Same as other list views (search, filters, sorting, column selection, pagination, export).

Creating a Signal

1. Click the + button in the table toolbar.
2. Fill in the required fields:
   • Name (required) — A descriptive name for the signal.
   • Type (required) — The IEC 104 data type (Type 1, 3, 13, 30, 31, 32, 36, 45, 46, 47, 50).
   • CASDU 1 / CASDU 2 (required) — The station address as two bytes (0–255 each).
   • IOA 1 / IOA 2 / IOA 3 (required) — The data point address as three bytes (0–255 each).
3. The system checks address availability in real time and shows a warning if the CASDU+IOA combination is already in use.
4. Click Save to create the signal, or Cancel to return to the list.

Editing a Signal

1. Click a row in the table.
2. Modify fields as needed. The ID cannot be changed.
3. Click Save or Cancel.

Linking Signals to Mappings

Signals can be linked to mappings from the Mapping detail page (see Mappings section). Each mapping can have one or more linked signals that define the target IEC 104 addresses.

Deleting Signals

Select one or more rows using the checkboxes, then click the delete button in the toolbar. Confirm in the dialog.

Workflow

Experimental — This feature is marked as experimental and may change in future releases. It is also the tab shown by default when you open Data Configuration.

The Workflow tab is an interactive editor for designing and managing data flows through your system. It provides a visual canvas where you can place connector nodes, connect them with data streams, and monitor live throughput.

Layout

The editor is divided into three panels:

Panel	Content
Palette (left)	Draggable node types organized into Sources, Processing, and Sinks
Canvas (center)	The main editing area where nodes are placed and connected
Inspector (right)	Properties and configuration of the selected node or edge

Palette

The palette provides the building blocks for your data flow:

Sources — Produce messages:

• MQTT Connector — Subscribes to a broker and publishes to a data stream
• IEC 104 IN — Receives IEC 60870-5-104 telemetry
• REST IN — Exposes an HTTP endpoint that pushes into a data stream

Processing — Transform messages:

• Filter Node — Rule-based filter for message processing
• Custom Node — Custom processing logic

Sinks — Forward messages:

• IEC 104 OUT — Forwards messages as IEC 60870-5-104
• REST OUT — Sends data stream messages to an HTTP endpoint

Canvas

The canvas displays all connector nodes with their data streams. Each node shows:

• The connector type and name
• Connected data streams (output and error streams)
• A status badge with the current message count
• A colored indicator showing online (green) or offline (red) status

Edges between nodes represent data streams and display live throughput (e.g., "3 upd/min").

Inspector

Click any node or edge on the canvas to view and edit its properties in the Inspector panel.

Toolbar

The toolbar at the top provides:

• Live throughput indicator (e.g., "1.4 upd/min")
• Error count badge with link to affected streams
• Delete — Remove selected nodes
• Save layout — Persist the current node arrangement
• Export — Export the workflow configuration
• Deploy — Apply the workflow to the running system

Interactions

• Drag nodes from the palette onto the canvas
• Click a node or edge to inspect its properties
• Right-click for context menu options
• Scroll to zoom in/out
• Use the zoom controls at the bottom of the canvas

Streams

The Streams tab provides an overview of all data streams in the system. Data streams are the asynchronous channels that connectors use to exchange data — each connector reads from or writes to one or more streams.

Stream List

A searchable list of all active streams. Each stream is shown with its name and a view button.

• Search — Filter streams by name using the search bar
• Refresh — Reload the stream list

Stream Detail Dialog

Click the view button on any stream to open a detail dialog showing:

• Connected Connectors — Which connectors read from or write to this stream
• Recent Process Updates — The latest data entries in the stream
• Stream Statistics — Live metrics about stream activity

Process Updates

The Process Updates page provides a real-time view of all data flowing through your connectors. It shows every value change as it happens, giving you complete visibility into your system's activity.

Available Information

Column	Description
Timestamp	When the update occurred
Connector	Which connector processed the update
CASDU	The station address (IEC 104)
IOA	The data point address (IEC 104)
Value	The actual value that was processed
Quality	Quality flags associated with the value

Filtering

Use the column filters to narrow down the view:

• Filter by connector to see activity from a specific adapter
• Filter by CASDU/IOA to track a specific data point
• Filter by time range to analyze historical activity

Export

Process update data can be exported to an Excel file (.xlsx) for external analysis or reporting.

Real-Time Updates

The page uses WebSocket streaming to deliver updates in real time. New entries appear automatically at the top of the list without requiring a page refresh.

Audit Logs

The Audit Logs section provides a complete history of all changes made in the system. This is a read-only view — entries cannot be modified or deleted.

Available Information

Column	Description
Timestamp	When the action occurred
User Name	Who performed the action
User Email	Email address of the user (hidden by default, can be enabled via column picker)
Action	What was done — Create, Update, Delete, or Configure
Entity Type	What was affected (e.g., Connector, Mapping)
Entity Name	The name of the affected item

Actions are displayed as colored tags:

• Create — Green
• Update — Orange
• Delete — Red
• Configure — Blue

Filtering and Searching

Use the search bar to filter by user name, email, entity type, or entity name. Column-level filters are also available for more precise filtering. The Action column has a dropdown filter.

Export

Audit log data can be exported to an Excel file (.xlsx) for external reporting or compliance purposes.

Detail View

Click any audit log row to open a detail dialog showing:

• Full metadata (timestamp, user, action, entity)
• A diff view comparing the old and new values of the changed entity (JSON key-value comparison)

This allows you to see exactly what was modified in each update.

Fleet Management

Experimental — The Fleet Management page is only available when the Fleet Management backend is deployed and configured.

The Fleet Management page provides centralized monitoring and control of all edge devices running ALP-CONNEX connectors. It has five tabs: Devices, Device Groups, Connector Templates, Applications, and Credentials.

KPI Cards

Summary cards at the top show the current fleet state:

• Total Devices — Number of registered devices
• Online — Devices that sent a heartbeat within the expected window
• Warnings — Devices in the WARNING state
• Offline — Devices that haven't sent a heartbeat recently

The Warnings and Updating counters are reserved for future use. No live code path currently puts a real device into those states, so outside of the demo seed data these cards stay at zero.

Device Table

A sortable, filterable table listing all registered devices:

Column	Description
Device Name	The registered device name
Site	The site the device belongs to
Status	Online (green), Warning (orange), Offline (red)
Architecture	Hardware architecture (e.g., ARM64, AMD64)
IP Address	Device network address
Connectors	Running connector types shown as colored badges
Health	Health score (0–100%) with visual indicator
Last Seen	Time since the last heartbeat

The Health column shows a stored value that is set to 100 at registration and is not recalculated from live metrics. Judge a device's condition from the CPU/RAM/disk bars in the detail drawer instead.

Filters:

• Search by name, site, or IP address
• Filter by status (All / Online / Warning / Offline)
• Filter by site
• Auto-refresh interval selector (5s, 10s, 30s, 60s, or off)

Device Detail Drawer

Click any device to open a side drawer with multiple tabs:

Overview tab:

• Device Info — OS, kernel, architecture, uptime, IP address, software version
• Group and Location — Group membership and the device's geographic position
• Additional Containers — Docker containers running on the host that are not ALP-CONNEX connectors, so you can see what else the device is doing
• Resource Usage — CPU, RAM, and disk usage as progress bars
• Running Connectors — List of ALP-CONNEX connectors discovered on the device with per-connector actions (Start, Stop, Restart, Pull)
• Recent Events — Recent events and command results

Profile tab:

• View and edit the device's configuration profile
• Apply a profile to define which connectors should run on the device

Drift tab:

• Shows differences between the expected profile configuration and the actual device state

Device Registration

Click Register Device to add a new edge device:

1. Enter a Device Name and select or create a Site
2. The system automatically requests a device-specific enrollment token (short-lived, single-use) from the PKI module and returns it as part of a ready-to-use install command
3. Copy the install command and run it on the target device

The device uses this enrollment token exactly once, on its first start, to obtain its own certificate — see Certificate Management below and Additional Services / PKI for the full flow.

Remote Commands

Use the device detail drawer to send commands to a device:

• Restart Connectors — Restarts all connector containers
• Connector Start / Stop / Restart — Acts on a single connector
• Update — Pulls a specified image and restarts the target container
• Agent Update — Replaces the fleet agent itself
• Configure — Pushes a configuration payload to the device
• Certificate Renew — Triggers an immediate certificate renewal

Further command types are issued from other places in the UI: AI Chat from the AI Insights page, and Application Bundle Apply / Remove from the Applications tab.

Commands are queued and executed on the next device heartbeat.

Device Groups Tab

Device Groups let you organize devices into reusable groups for filtering and bulk assignment.

Column	Description
Name	The group name
Description	Optional description text
Certificate Authority	The certificate authority devices in this group use for their certificates (see below); "-" if none is assigned
Devices	Number of devices currently in the group
Created / Updated	Timestamps

Creating or editing a group: Click New Group (or click a group to edit it), set a name and optional description, and optionally choose a Certificate Authority. Assigning one here means every device in this group has its certificates issued by that specific CA instead of the platform's default — useful when different sites or customers need certificates from different, isolated CAs. Leaving it unset uses the default CA. See Additional Services / PKI for how certificate authorities work.

Deleting a group: Click the delete icon next to a group and confirm.

Connector Templates Tab

Experimental

The Connector Templates tab allows you to define reusable connector configurations that can be applied to device profiles. Instead of manually configuring each device, you create templates and assign them to profiles for consistent fleet-wide deployment.

Applications Tab

Experimental

The Applications tab deploys containerized workloads to edge devices — anything from a local AI inference service to a protocol gateway. See Additional Services / Fleet Management for the underlying concepts.

The tab shows a list of applications on the left and the selected application's details on the right.

Creating an application: Click New, give it a name and description. An application on its own does nothing — it is a container for revisions.

Creating a revision: With an application selected, click New Revision and paste the specification. A revision is immutable: to change anything, you create the next revision. Each revision is numbered and gets a spec digest that the target device verifies before it acts.

Deploying: Click Deploy, choose a target device, and click Check Compatibility. The result tells you whether the device's reported capabilities satisfy the revision's requirements — deploy only after this passes. Confirming queues the rollout, which the device picks up on its next heartbeat.

Device Deployment History: The deploy dialog lists every revision previously rolled out to that device, each with a Rollback action to return the device to that revision.

Removing and deleting:

• Remove takes the application off a single device, stopping its containers and cleaning up its networks and staged files.
• The delete icon next to an application removes it and all its revisions from the platform.

Credentials Tab

Experimental

Credentials hold the secrets that applications need, so they never have to appear in a specification. Two types exist:

Type	Contains	Used for
Secret	A single value	An environment variable of a service
Registry	Username and password	Logging in to a private container registry

Each credential has a short reference — lower-case letters, digits, ., _, and - — which is what a specification points at. The reference and the type cannot be changed after creation; only the value can be rotated.

Stored values are encrypted and are never shown again after saving, not in the list and not in the edit dialog. They are delivered directly to a device only while a deployment that references them is in flight.

AI Insights

Experimental — The AI Insights tab is only available when the optional AI service is deployed and configured. When no LLM endpoint is reachable, the menu entry is hidden and the rest of the application is unaffected.

The AI Insights page brings the optional ALP-CONNEX AI Service directly into the Management UI. It gives operators plain-language explanations of what the live process image is doing, suggests prioritized actions for individual data points, summarizes a signal over a chosen time window, and offers a streaming chat assistant that has the current process image as context. The AI never issues control commands by itself — every result is presented for review.

Status Bar

A status bar at the top of the page shows the health of the AI stack as colored badges:

Badge	Meaning
AI-Service	Reachability of the AI service container
Hailo	Local AI accelerator (only relevant on edge deployments)
ChromaDB	Vector store backing the Knowledge Base
Valkey	Shared in-memory data store the AI service reads from
Knowledge Base	Number of documents currently indexed
Model	Name of the active language model (e.g., gpt-4o-mini); the LLM provider is shown as a tooltip

A Refresh status button re-checks all components on demand.

Knowledge Base

A toolbar above the panels lets you manage the operator knowledge that the AI is grounded on:

• Upload KB document — Add a .pdf, .md, .csv or .txt file. The document is chunked, embedded, and stored in ChromaDB. A status badge confirms success or surfaces the error message.
• Reindex KB — Rebuild the entire vector index from the currently uploaded documents. A confirmation dialog is shown before the operation runs.

Uploaded documents are automatically used as additional context for Recommend, Explain, Analyze, and Chat.

Recommend

Returns a context-aware action proposal for one specific data point.

Inputs

Field	Description
CASDU	Common Address of ASDU of the data point
IOA	Information Object Address of the data point

Click Request recommendation to send the request. The AI service reads the live value, recent history, and quality of the addressed data point and combines it with relevant Knowledge Base entries.

Output

• A severity badge (info, warning, critical) summarising the situation
• A short summary describing the current state and trend
• An Actions list with one or more proposals; each action shows a title, a short rationale, and a priority badge (low, medium, high)

Explain

Produces a plain-language interpretation of a single data point. Click Load explanation to fetch the answer for the CASDU/IOA pair currently selected in the Recommend panel.

The response includes the current value, the detected trend (stable, rising, falling), the quality, and a structured JSON object with severity, summary, and a list of follow-up actions — useful for shift handover or for documenting an incident.

Analyze

Generates a statistical and qualitative summary of a signal over a configurable time window.

Inputs

Field	Description
CASDU	Common Address of ASDU of the data point
IOA	Information Object Address of the data point
Time window	Aggregation window (e.g., 1 h, 24 h)

Output

Four numeric badges show min, max, mean, and standard deviation for the selected window, followed by a structured AI summary with severity, narrative, and proposed actions.

Chat

A streaming operator assistant. Type a question into the Ask AI… field and press Send. Replies are streamed token by token and have the live process image plus the Knowledge Base as context, which makes the chat suitable for ad-hoc diagnostics across multiple signals ("compare bay 1 and bay 2 voltage in the last hour", "which signals currently report invalid quality?", "what would you check first given the recent trip on CASDU 225?"). Beyond diagnostics, the chat assistant can also configure the system directly. You can ask it to create, update, or delete connectors, signals, and mappings in natural language — for example: "Create an MQTT connector called Weather Station on port 1883" or "Add a signal for temperature at CASDU 225, IOA 100". Destructive operations require explicit confirmation before execution. The chat keeps the conversation history within a single session.

Choosing where the model runs. A target selector next to the input field lets you pick between:

• Management AI — the central AI service (the default)
• An online Edge device — the prompt is sent to that device as a fleet command and answered by the model running locally on it

Edge targets are the currently online fleet devices; use the refresh button beside the selector to reload the list. Running a prompt on the edge keeps the data on the device, which matters when data-protection rules prevent sending process data to a central service. It is also the fallback when the central AI service is unreachable — the page says so explicitly and suggests selecting a device.

Note that an Edge answer comes from the device's local model and is not enriched with the central Knowledge Base or the live process image, and it cannot perform configuration changes. Edge replies also arrive as a whole rather than streaming: the prompt is queued as a command, picked up by the device on its next heartbeat, and the page polls until the device reports a result. The message status shown next to the reply reflects that progress.

Certificate Management

The Certificate Management page is where the platform's built-in PKI is administered — the certificates that give every Fleet device its own identity, the certificate authorities that issue them, and the requests generated while enrolling or renewing them. See Additional Services / PKI for a conceptual explanation of the whole certificate lifecycle; this section describes the UI itself.

The page has three tabs.

Certificates

A table of all issued device certificates:

Column	Description
Common Name	The certificate's subject, usually the device identifier
Type	Purpose of the certificate — Client TLS or Server TLS
Serial	The certificate's serial number
Device	The Fleet device the certificate belongs to (click to open it)
Status	Active, Expiring, Expired, Revoked, Not Yet Valid, or Unknown
Valid From / Expires	The certificate's validity window
Remaining	A progress bar showing remaining lifetime, color-coded from green (healthy) to orange (expiring) to red (expired)

Row actions:

• Download — Save the certificate as a PEM file
• Renew — Available for active or expiring certificates. Queues a renewal request that is delivered to the device; the device performs the actual renewal on its next check-in
• Reissue — Available only for already-expired certificates. Generates a new enrollment token for the linked device so it can be onboarded again
• Revoke — Immediately invalidates the certificate; requires confirmation

Clicking a row opens a detail drawer with the full certificate, its trust chain (clickable, to jump to the issuing CA or back down to the device certificate), and the same actions.

Certificate Authorities

Shows the CA hierarchy as either a table or a tree (toggle at the top). Each entry shows the CA's name, status (Active, Lost, Revoked), and validity.

• Create CA — Opens a dialog to create a new certificate authority. Choose a name, a validity period (in days), and a parent CA — or leave the parent empty to create a new root CA (only offered when appropriate)
• Selecting a CA opens the same detail drawer as for device certificates, with actions to download its certificate, download its CRL (certificate revocation list), revoke it, or set it as the default CA used for future certificate issuance

Certificate Requests

A queue of certificate operations (currently certificate renewals) that have been dispatched to devices, grouped into three views:

• Pending — Queued or already dispatched to the device, waiting to complete
• Completed — Successfully completed, cancelled, or expired
• Failed — Did not complete successfully; the Error column shows why

Each row shows the request type, status, the affected certificate and device (both clickable), and the relevant timestamps. A still-pending request can be cancelled.

Licensing

The Licensing section shows your current license status and allows you to update your license key.

License Information

The license card displays:

Field	Description
Status	Whether the license is Valid (green) or Invalid (red)
Licensee	The organization or person the license is issued to
Expiration Date	When the license expires, including days remaining
Max Connectors	Maximum number of connectors allowed (∞ = unlimited)
Max Mappings	Maximum number of mappings allowed (∞ = unlimited)

The expiration date is color-coded:

• Green — More than 30 days remaining
• Orange — 30 days or fewer remaining
• Red — 7 days or fewer remaining

Updating Your License Key

1. Enter your new license key in the License Key field.
2. Click Update Key.
3. The license information will refresh automatically.

Contact your administrator or support if you need a new license key.

Profile

The Profile page shows your account information as provided by your organization's Microsoft Entra ID directory.

Displayed Information

• Profile Photo — Your Microsoft account photo (or initials if no photo is available)
• Display Name — Your full name
• Email — Your email address
• Roles — Any application roles assigned to you, shown as colored badges

Theme

The Profile page includes a theme selector with three options:

Option	Description
Light	Light background with dark text
System	Automatically follows your operating system's preference
Dark	Dark background with light text

Your theme preference is saved and persists across sessions.

Logout

Click the Logout button on the Profile page to sign out of the application. You reach the Profile page by clicking your avatar in the top-right corner of the header bar.

Table Features (All List Views)

All list views (Connectors, Mappings, Audit Logs) share common table functionality:

Search

Type in the search bar to filter across multiple columns simultaneously. The search updates in real time.

Column Filters

Click the filter icon (≡) in any column header to open advanced filter options:

• Text columns: Contains, Equals, Starts with, Ends with
• Numeric columns: Equals, Greater than, Less than
• Date columns: Date is, Date before, Date after
• Enum columns: Dropdown with predefined values

Sorting

Click a column header to sort by that column. Click again to reverse the sort order.

Column Selection

Use the column picker dropdown to choose which columns are visible.

Pagination

Use the page controls at the bottom of the table to navigate through results. Select the number of rows per page (10, 25, 50, or 100).

Row Selection

Click the checkbox in the leftmost column to select rows for batch operations (e.g., bulk delete).

Export

Click the export button in the toolbar to download the current table data as an Excel file (.xlsx).

Responsive View

On smaller screens (tablets, mobile), the table automatically switches to a card-based layout where each row is displayed as a compact card.

Error Notifications

The application shows toast notifications in the top-right corner of the screen for important events:

Type	Color	Examples
Success	Green	Connector saved, mapping created, license updated
Error	Red	Server not reachable, validation failed, permission denied

Success notifications disappear automatically after a few seconds. Error notifications are also shown automatically when a server request fails (e.g., network error or server-side validation error).

---

For technical details about the ALP-CONNEX platform, see the ALP-CONNEX Overview.
